Example 1

This script demonstrates setting up a basic EMDtool motor model using geometry templates.

Setting some dimensions

General dimensions

dim = struct();

dim.p = 3;
dim.symmetry_sectors = dim.p*2;
dim.delta = 1.5e-3;
dim.leff = 150e-3;

dim.temperature_stator = 120;
dim.temperature_rotor = 120;

Stator dimensions

PHASES = 3;
SLOTS_PER_POLE_AND_PHASE = 2;
AIRGAP_FLUX_DENSITY_FOR_SIZING = 1;

%slots
dim.Qs = PHASES * 2*dim.p * SLOTS_PER_POLE_AND_PHASE;

%winding
winding = DistributedWindingSpec(dim);
winding.N_layers = 1;
winding.N_series = 12;
winding.phases = PHASES;
winding.a = dim.p*2;
dim.stator_winding = winding;

%inner and outer diameter
dim.Sin = 157e-3/2; %inner radius of stator
if dim.p == 1
    dim.Sout = dim.Sin / 0.5;
elseif dim.p == 2
    dim.Sout = dim.Sin / 0.6;
else
    %very rough
    dim.Sout = dim.Sin / 0.67;
end

%slot opening and bottom specs
dim.htt_taper_s = 1e-3; %slot opening, straight part before taper
dim.htt_s = 1.5e-3;
dim.wso_s = 2e-3;
dim.r_slotbottom_s = 1.2e-3;

%yoke height
hys = 2*pi*dim.Sin / (2*dim.p) * AIRGAP_FLUX_DENSITY_FOR_SIZING * 2/pi / 2 / 1.5;
dim.hslot_s = abs(dim.Sout - dim.Sin) - hys;
dim.wtooth_s = 2*pi*(dim.Sin + dim.htt_s)/dim.Qs * 0.6;

%adding cooling holes to the yoke just because
dim.alpha_cooling_hole = 0.3;
dim.h_cooling_hole = 2e-3;
dim.h_cooling_rib = 4e-3;

%materials
dim.stator_core_material = SteelLibrary.create('M270-35A')

dim = struct with fields:
                       p: 3
        symmetry_sectors: 6
                   delta: 0.0015
                    leff: 0.1500
      temperature_stator: 120
       temperature_rotor: 120
                      Qs: 36
          stator_winding: [1x1 DistributedWindingSpec]
                     Sin: 0.0785
                    Sout: 0.1172
             htt_taper_s: 1.0000e-03
                   htt_s: 0.0015
                   wso_s: 0.0020
          r_slotbottom_s: 0.0012
                 hslot_s: 0.0212
                wtooth_s: 0.0084
      alpha_cooling_hole: 0.3000
          h_cooling_hole: 0.0020
           h_cooling_rib: 0.0040
    stator_core_material: [1x1 Material]


dim.stator_stacking_factor = 1;
dim.stator_wedge_material = 0;

Rotor dimensions

dim.Rout = dim.Sin - dim.delta;
dim.Rin = 30e-3;

dim.w_mag = 30e-3;
dim.h_mag = 6e-3;
dim.angle_mag = pi/180 * 20;

dim.w_bridge_interpole = 5e-3;
dim.w_bridge_center = 2e-3;
dim.w_bridge_out = 1e-3;

dim.w_pocket_in = 2e-3;
dim.w_pocket_out = 1e-3;

dim.magnet_material = PMlibrary.create('N42SH');
dim.rotor_core_material = dim.stator_core_material;
dim.shaft_material = 1;

Creating geometries and a model

Geometries and visualization

stator = Stator(dim);
rotor = VIPM1(dim);

%plotting geometries

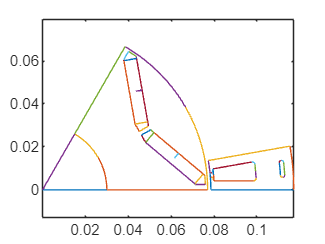

figure(1); clf; hold on; box on; axis equal;
stator.plot_geometry();
rotor.plot_geometry();


Model and visualization

motor = RFmodel(dim, stator, rotor);

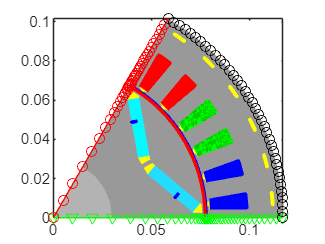

figure(2); clf; hold on; box on; axis equal;
motor.visualize('plot_axial', false, 'plot_ag', true, 'plot_nodes', true);
